Exploring Different Types of Slitting Techniques

What is Slitting?

Slitting, also known as roll slitting, is a manufacturing process that involves separating large rolls of material—such as paper, plastic film, metal foil, or textiles—into narrower strips or rolls. This technique is essential in industries like packaging, automotive, electronics, and textiles, where precise material dimensions and excellent slitting quality are required.

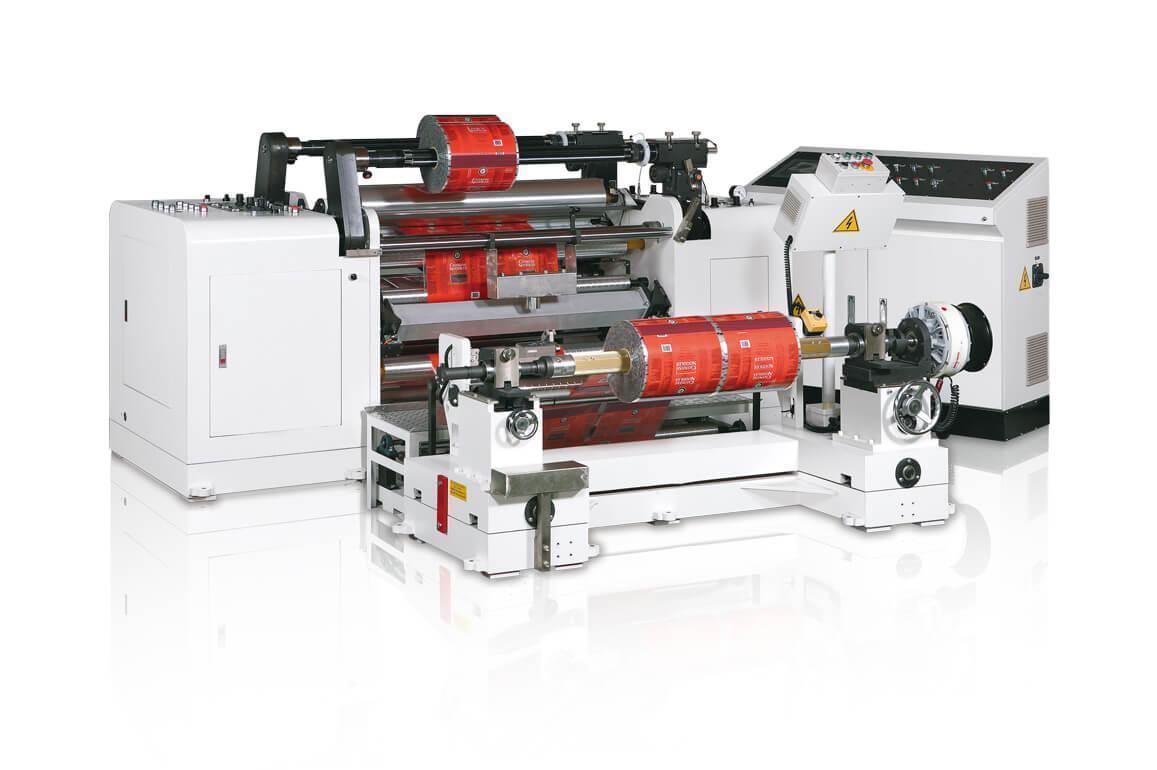

Slitting machines, also called slitters or slitter rewinders, use sharp blades or other cutting mechanisms to achieve clean, accurate cuts. The machine can be customized to meet specific width requirements, ensuring the material is ready for subsequent applications like coating, laminating, or packaging.

Types of Slitting Techniques

There are two primary categories of roll slitting techniques: log slitting and rewind slitting. Rewind slitting further includes three distinct methods: razor slitting, shear slitting (rotary blade slitting), and crush cutting (score slitting). Each method has unique characteristics, applications, and material compatibility.

1. Log Slitting

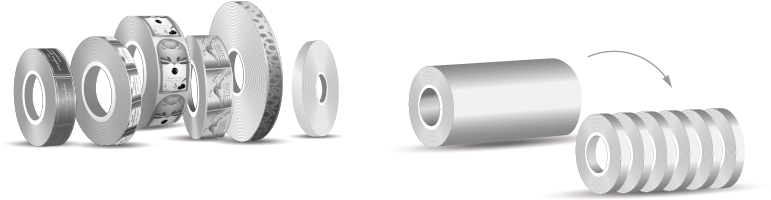

• Working Principle: Also called lathe slitting, log slitting involves cutting a large roll (or "log") of material into smaller rolls without unwinding it. The roll is mounted on a mandrel, and a circular blade or band saw moves through the material to create narrower rolls.

• Applications: Log slitting is commonly used for materials like adhesive tapes, foam, rubber, and non-woven fabrics. It’s ideal for applications requiring high-volume production of uniform rolls.

• Suitable Materials: Soft or thick materials such as foam, rubber, and certain plastics.

• Advantages:

        High-speed production for thick or soft materials.

        Minimal material handling, reducing the risk of damage.

        Cost-effective for large-diameter rolls.

• Disadvantages:

        Limited precision compared to other methods.

        Not suitable for very thin or delicate materials.

Rewind Slitting

Rewind slitting involves unwinding a large roll, slit it into narrower strips, and rewinding the strips into smaller rolls. This category includes three main techniques:

.a. Razor Slitting

• Working Principle: Razor slitting uses a single, sharp razor blade to cut through the material as it passes over a roller or through a slitting station. The blade is positioned at a precise angle to ensure clean cuts.

Razor slitting can be separated into two methods that differ in how the blade interacts with the material:

• Razor-in-Air relies on material tension and is best for thin, flexible materials.

• Razor-in-Groove uses a grooved roller for support, making it more versatile for slightly thicker or elastic materials.

• Applications: Ideal for thin, flexible materials like plastic films, paper, and lightweight foils used in packaging and labeling.

• Suitable Materials: Thin films, paper, and lightweight non-wovens.

• Advantages:

       Simple and cost-effective setup.

       Produces clean, precise cuts for thin materials.

       Easy to adjust for different slit widths.

• Disadvantages:

       Not suitable for thick or abrasive materials.

1. Shear Slitting (Rotary Slitting)

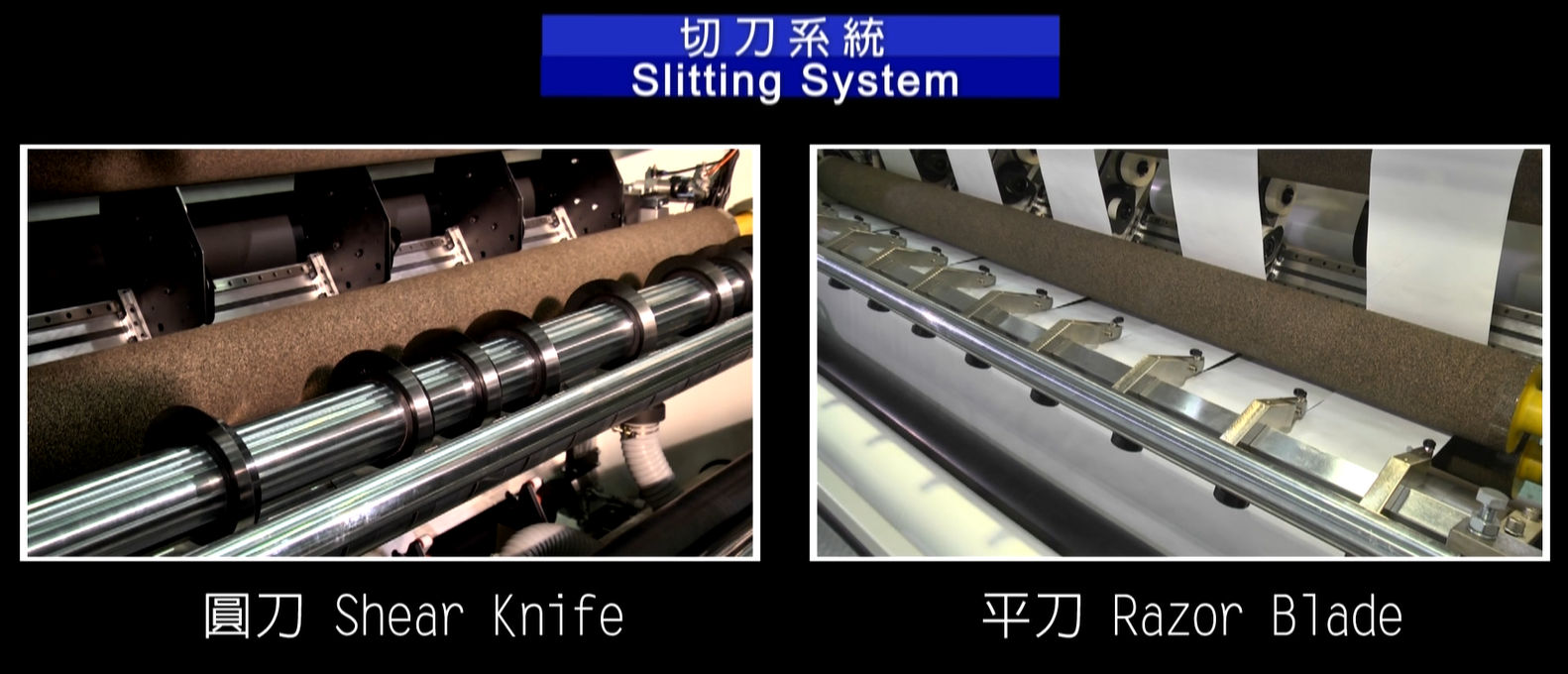

• Working Principle: Shear slitting employs two rotating blades (one upper and one lower) that work like scissors to shear the material. The blades rotate in opposite directions, creating a clean, precise cut.

Shear slitting can also be separated into two methods that differ in how the material interacts with the shear blades:

• Tangential Slitting uses a straight material path, making it faster and more suitable for thicker or tougher materials.

• Wrap Slitting wraps the material around the lower blade, providing better stability and edge quality for thinner or more flexible materials.

• Applications: Used in industries requiring high precision, such as metal foil production, high-quality packaging, and electronics.

• Suitable Materials: materials with greater thickness or strength, such as thick plastics, laminates, and paper.

• Advantages:

High precision and clean edges, even for thicker materials.

Suitable for a wide range of materials.

• Disadvantages:

Higher equipment and maintenance costs.

Requires skilled operators for setup and calibration.

1. Crush Cutting (Score Slitting)

• Working Principle: Crush cutting uses a hardened blade pressing against a roller or anvil to "crush" or score the material, creating a cut. The pressure fractures the material along the desired line.

• Applications: Common in processing pressure-sensitive adhesives, labels, and corrugated materials.

• Suitable Materials: Brittle or semi-rigid materials like paperboard, adhesives, and certain plastics.

• Advantages:

Effective for materials that are difficult to cut with other methods. This approach is suitable for processing materials with diverse hardness levels and dimensional profiles.

• Disadvantages:

Less precise than shear or razor slitting.

May produce rougher edges or material deformation.

How to Choose the Right Slitting Technique?

Selecting the appropriate slitting technique depends on several critical factors to ensure optimal performance and product quality:

1. Component Precision

The precision and quality of the slitting machine itself are important. Excellent machines with tight tolerances ensure consistent slit and minimize defects. Look for equipment with robust construction and high-quality components to withstand continuous operation. Precision in the machine’s design directly impacts the quality of the final product, especially for industries requiring exact specifications.

1. Blade Selection and Customization

Different materials require specific blade types, such as razor blades for thin films or rotary blades for metals. Partnering with a manufacturer that offers customized blade solutions can enhance performance. Custom blades designed for unique material properties or specific applications can improve cut quality and reduce waste.

1. Control Systems

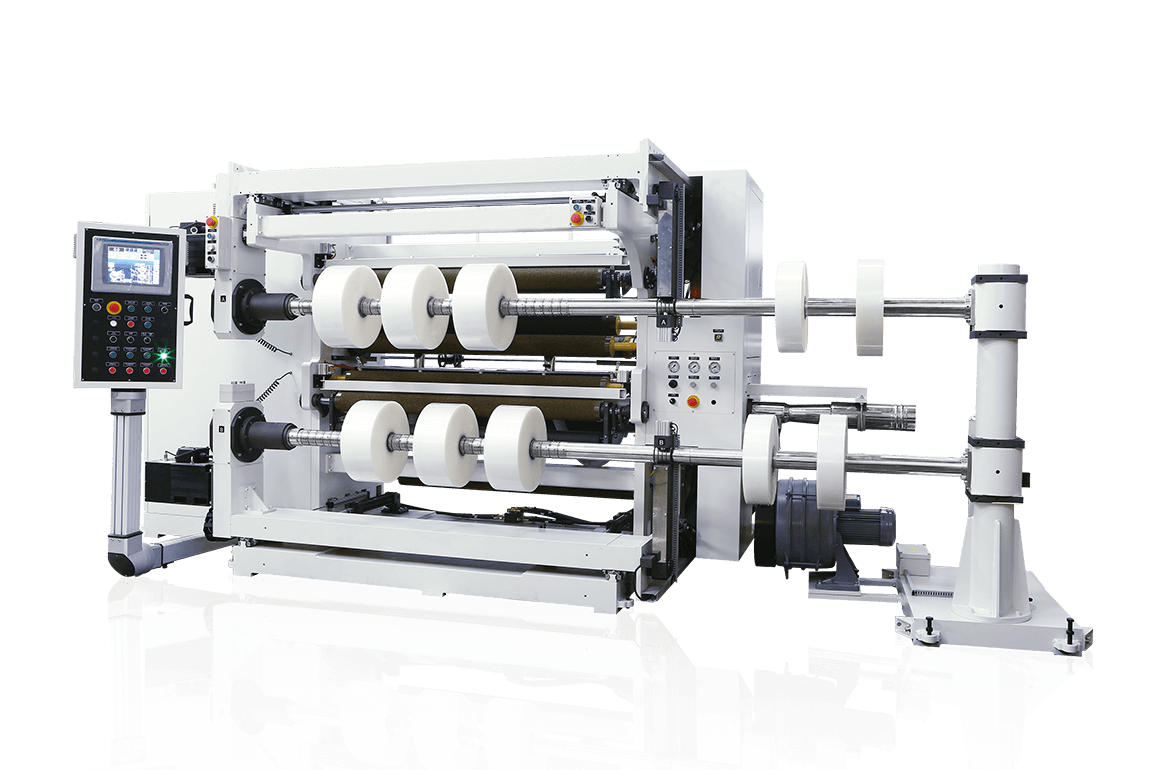

A reliable control system is essential for efficient and stable production. Modern slitting machines feature advanced PLCs and touchscreen interfaces that allow operators to monitor and adjust settings easily. A stable control system ensures consistent tension, speed, and alignment, reducing errors and downtime. Look for machines with user-friendly interfaces and diagnostic tools to streamline operations.

Consider the material type, thickness, desired edge quality, production speed, and budget when choosing a slitting method. Consulting with experienced manufacturers like Dah Bah Machinery can help tailor solutions to your needs.

FAQ

Q1: How can I achieve smooth slitting and rewinding?

A: Smooth slitting and rewinding require a combination of high-quality blades and a robust control system. Selecting the right slitting method for your material ensures clean cuts, while a stable control system maintains proper tension and alignment during the process. Regular maintenance and calibration further enhance performance.

Q2: What is the purpose of slitting?

A: Slitting is used to cut wide rolls of material into narrower strips, making them suitable for downstream processing or final applications. It enhances material handling efficiency, ensures dimensional accuracy, and minimizes waste.

Dah Bah Machinery: Offering Reliable Slitting Solutions Since 1964

Slitting is a vital process for transforming large rolls of material into precise, narrower strips, and choosing the right technique—log slitting or rewind slitting (razor, shear, or crush slitting)—is key to achieving high-quality results. Each method offers unique benefits and challenges, depending on the material, application, and production goals. By considering factors like component precision, slitting method selection, and control systems, businesses can optimize their slitting processes for efficiency and quality.

For those seeking reliable slitting solutions, Dah Bah Machinery stands out as a leader in the industry. With over 60 years of experience, Dah Bah delivers remarkable slitting machines built with meticulously crafted components. Dah Bah Machinery handles the entire process from R&D and part design to final assembly in-house.  The company meets all three critical factors for selecting a slitting technique, ensuring outstanding performance and efficiency. Our machines excel in component precision, slitting method selection, customization, and advanced control systems, making them a reliable choice for various slitting applications.

Whether you’re in packaging, textiles, or electronics, Dah Bah Machinery is a trusted partner for enhancing your slitting operations. Please feel free to contact us for further information.
