How Copper Foil Slitting Machines Benefit Lithium-Ion Battery Electrode Production

The global transition to clean energy has led to a surge in demand for high-performance lithium-ion batteries, which are essential for electric vehicles, solar energy storage, fuel cell systems, and consumer electronics. A key element in lithium-ion battery production is the copper foil for the anode, which must be processed with precision for optimal conductivity and durability. Copper foil slitting machines play a crucial role in efficiently producing high-quality anodes.

This article explores the role of copper foil slitting machines in lithium-ion battery electrode production, their working principles, and benefits.

Why Is Precision Slitting Critical for Lithium-Ion Battery Performance?

Lithium-ion battery production consists of several stages: electrode preparation, cell assembly, electrolyte filling, and testing. The battery includes a cathode, anode, electrolyte, separator, casing, and safety devices. The cathode is made by coating a thin copper foil (8–10 µm) with conductive materials like graphite, while the anode typically uses aluminum foil.

Precision slitting is important for cutting copper foil into narrow strips for cathode, ensuring the correct specifications. Inconsistencies in strip width or quality can compromise battery performance, resulting in issues such as reduced efficiency or short circuits.  Clean, burr-free edges reduce the risk of particles or metal fragments contaminating the separator or electrolyte, which could lead to internal shorting or thermal runaway.

Slitting minimizes trimming and scrap, thereby improving yield and lowering production costs, which is especially important for expensive battery-grade materials. In summary, poor slitting can compromise battery safety, capacity, and cycle life, making precision slitting a foundational step in lithium-ion battery manufacturing. High-precision slitting enhances the uniformity and quality of the copper foil, thereby improving battery reliability and efficiency.

These batteries are essential components in electric vehicles (EVs), residential solar energy storage systems, fuel cell backup power systems, and a wide range of consumer electronics such as smartphones, laptops, and tablets. As demand for high-performance batteries continues to grow, the importance of precision slitting in the foil manufacturing process becomes increasingly significant.

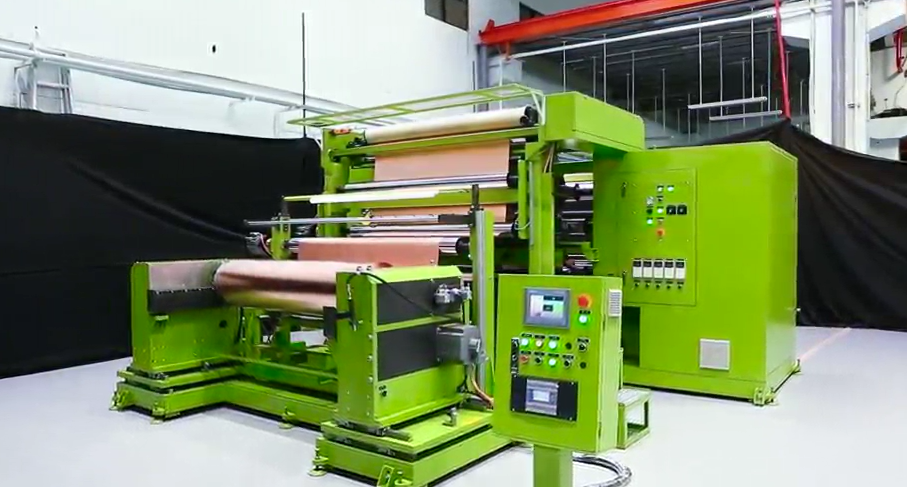

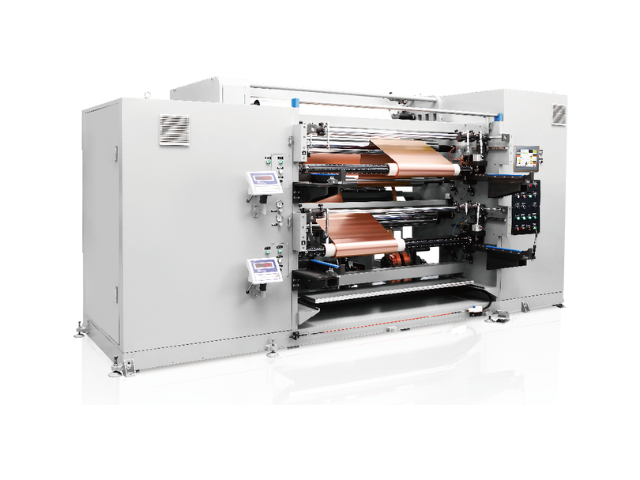

Working Principle of Copper Foil Slitting Machines

Copper foil slitting machines are specialized equipment designed to handle the delicate task of cutting ultra-thin copper foils with high precision.

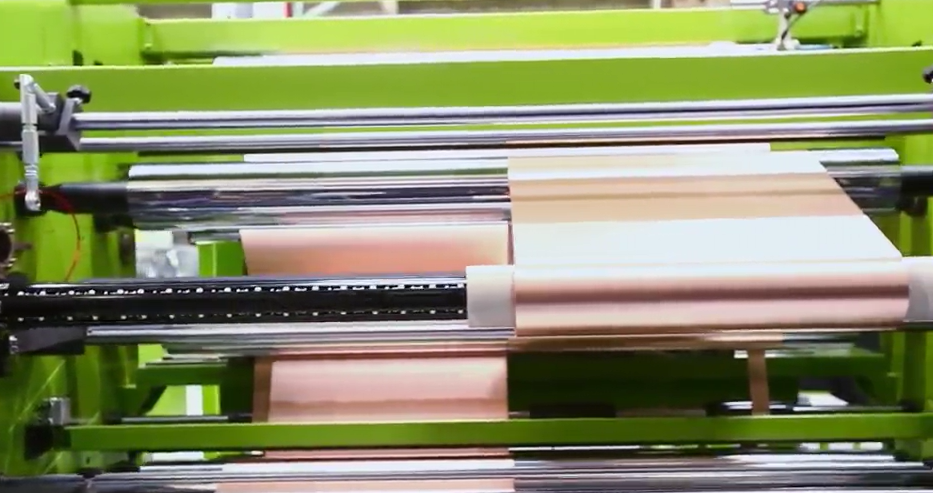

The process starts with an unwind system that feeds the master roll of copper foil into the slitting section. Here, high-precision rotary blades (typically shear knives) slice the foil into narrower strips. The slit strips are then re-winded onto narrower cores using a rewind system. Advanced machines incorporate automated tension control, web guiding, and laser alignment for winding core to ensure consistent cuts and prevent material deformation. Shear slitting is commonly used for copper foil due to its ability to produce clean, burr-free edges, which are critical for maintaining cathode integrity in lithium-ion batteries.

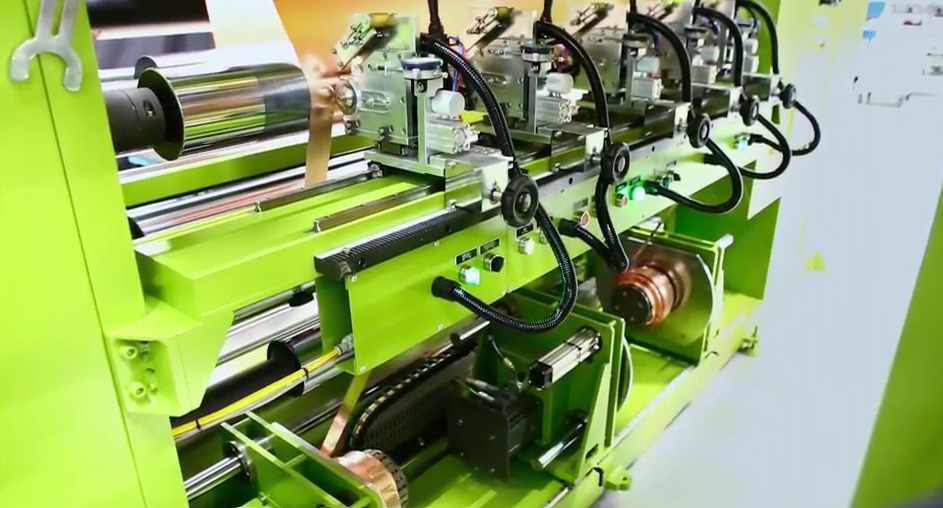

Key components include high-precision blades, robust drive systems, and control systems that monitor and adjust parameters in real-time. These features ensure the foil remains flat and undistorted during cutting, meeting the stringent requirements of battery manufacturing. Copper foil slitting machines are also applicable for producing copper-clad laminates, circuit boards, and microchip substrates.

How Copper Foil Slitting Machines Enhance Cathode Efficiency

Copper foil slitting machines significantly improve the efficiency and quality of lithium-ion battery cathode production through the following benefits:

• Enhanced Conductivity and Uniformity

Precision slitting prevents material stretching or warping, preserving the copper foil’s electrical conductivity. High-precision blades, often consist with materials like tungsten carbide, minimize edge burrs, reducing internal resistance and ensuring consistent cathode performance.

• Reduced Material Waste and Production Costs

Accurate slitting optimizes material usage, minimizing scrap and lowering costs. Advanced systems with automated tension control and web alignment ensure precise strip widths, further reducing waste and enhancing cost-efficiency.

• Improved Production Efficiency and Quality Stability

Automated slitting machines can also be designed to be equipped with X-ray thickness gauge or Automated Optical Inspection (AOI) device for defect detection, enabling high-speed production with minimal operator intervention, boosting throughput. Consistent, repeatable slitting ensures stable cathode quality, critical for large-scale battery manufacturing.

These advantages enable manufacturers to produce high-quality cathode that meet the performance demands of modern lithium-ion batteries while maintaining cost-effectiveness.

Future Trends in Copper Foil Slitting Machines

The lithium-ion battery industry is evolving rapidly, and copper foil slitting machines are adapting to meet new challenges. Emerging trends include:

• Ultra-Thin Foils: As batteries strive for higher energy density, manufacturers are utilizing copper foils thinner than 8 µm, necessitating slitting machines with enhanced precision and delicate tension control.

• Smart Automation: Integration of AI and IoT enables real-time defect detection, adaptive cutting adjustments, and predictive maintenance, improving efficiency and reducing downtime.

• Sustainability: Energy-efficient motors and in-process copper scrap recycling to reduce waste.

• Modular Customization: Machines are increasingly designed with modular components to accommodate diverse foil types and battery specifications, offering flexibility for manufacturers.

These trends ensure that slitting machines remain at the forefront of innovation, supporting the growing complexity of lithium-ion battery production.

FAQ

Q1: How should I choose blades for a copper foil slitting machine?

A: Blade selection depends on the copper foil’s thickness, hardness, and other properties. Collaborating with a trusted manufacturer like Dah Bah Machinery for material testing and custom slitting solutions ensures optimal slitting performance and edge quality.

Q2: What is copper foil used for?

A: Copper foil is used as the current collector for the cathode in lithium-ion batteries. It offers excellent electrical conductivity, mechanical stability, and compatibility with active materials such as graphite.

Q3: Why is edge quality important in copper foil slitting?

A: Burrs or jagged edges can cause short circuits in lithium-ion batteries or signal interference in electronics. High-quality edge control ensures safety, performance, and reliability.

Conclusions

Copper foil slitting machines are crucial for producing high-quality lithium-ion battery anodes, providing the precision necessary to ensure conductivity, uniformity, and durability. By minimizing waste, enhancing production efficiency, and maintaining consistent quality, these machines enable manufacturers to meet the demand for batteries in electric vehicles, solar storage, and consumer electronics. As the industry pushes toward thinner foils and smarter automation, advanced slitting technology will continue to drive innovation in battery manufacturing.

Dah Bah Machinery has been a reliable choice for slitting solutions since 1964. We have the advanced engineering capabilities and extensive experience necessary to produce high-end precision copper foil slitting machines. We offer high-precision slitting machines tailored to your material needs, whether for laminates, electronic technology, or metal foil like copper and aluminum.

Dah Bah Machinery is the best partner for lithium-ion battery manufacturers focused on anode/cathode production. Take a look at our copper foil slitting machine here! Please feel free to contact us for more information.
