In today's fast-paced manufacturing world, precision and efficiency are essential. One critical machine that helps achieve all is the slitting machine. This equipment plays a vital role across multiple industries, including packaging, paper industry, electronics, and metal processing.

But what exactly is a slitting machine, and why is it so important in modern production lines? In this article, Dah Bah Machinery, a professional slitting machine manufacturer, will share insights on the slitting machine process, including definitions, components, types, and applications.

What Is a Slitting Machine?

A slitting machine, also referred to as a “SLITTER” or “slitter rewinder”, is specialized equipment designed to slit large roll of material into narrower ones with remarkable precision.

These materials include plastic films, paper, laminates, and metal foils. The machine operates by feeding the material through sharp rotary blades or cutting tools that slice it into precise widths, often at high speeds. Slitters are essential in industries such as packaging, automotive, and electronics, where materials need to be slit to specific dimensions for further processing or use.

Types of Slitting Tools

Slitting machines typically use two types of slitting tools:

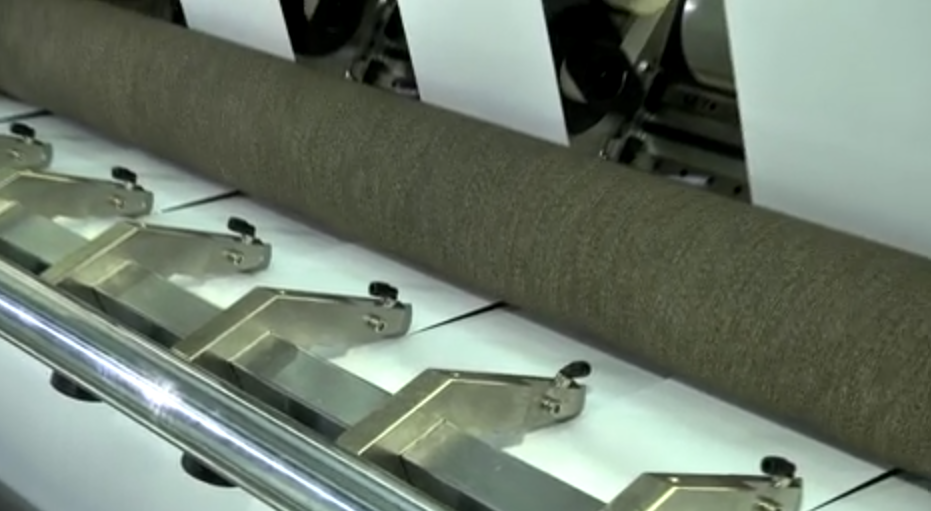

• Razor blades (Razor cutters)

For soft, flexible, and thin materials, such as plastic films.

• Circular blades (Circular shear cutters)

For tougher/thicker materials or material with fiber such as paper or metal foils.

Slitting Machine Process: How It Works

As we mentioned earlier, a slitting machine works by slit large rolls of material into narrower strips through a precise, automated process. Here is a breakdown of how it operates:

Material Feeding (Unwinding)

A large roll of material, such as metal, paper, or plastic film, is loaded onto an unwinder, which feeds it into the machine at a controlled speed, maintaining tension for smooth flow.

Slitting Process

The material passes through a slitting section, where the blades / slitting tools slice it with surgical precision into strips of the desired width.

Tension Control

Rollers with special treatment keep the material taut and aligned, preventing wrinkles or tears for flawless cuts.

Rewinding

The slit strips are neatly wound onto smaller rolls by a rewinder, with multiple shafts ensuring tight, uniform rolls.

The process can be continuous or batch-based, accommodating high-speed production. The slitting method and machine setup depend on the material's thickness, hardness, and desired strip width, using specialized components outlined in the next section.

Key Parts of a Slitting Machine

To achieve the precision of the slitting process, a high-performance slitting machine relies on key components designed for accuracy and efficiency:

• Unwinding Unit

 Holds and feeds large material rolls, maintaining stable tension for smooth operation.

• Slitting System

Utilizes precision-engineered cutting tools, adjustable for various material thicknesses, to ensure clean slit with minimal waste.

• Tension Control System

Modern slitters utilize automated controls (e.g., programmable logic controllers, or PLCs, or computer interfaces) to adjust blade positions, slitting speed, and tension for precision and consistency. Maintains consistent tension throughout the material to avoid wrinkles, stretching, or tearing. It is crucial for processing delicate or elastic materials.

• Rewinding Unit

Winds slit strips into tight, uniform rolls, controlling diameter and tension for easy handling and storage.

Types of Slitting Machines

Slitting machines come in various types. Below is an overview of the main types of slitting machines, categorized by slitting mechanism, material, or purpose:

1. By Material Width

• Wide-web Slitting Machines: Handle large-format materials like packaging films; ideal for high-volume production.

• Narrow-web Slitting Machines: Suited for smaller-width materials such as labels and tapes; common in label printing and electronics.

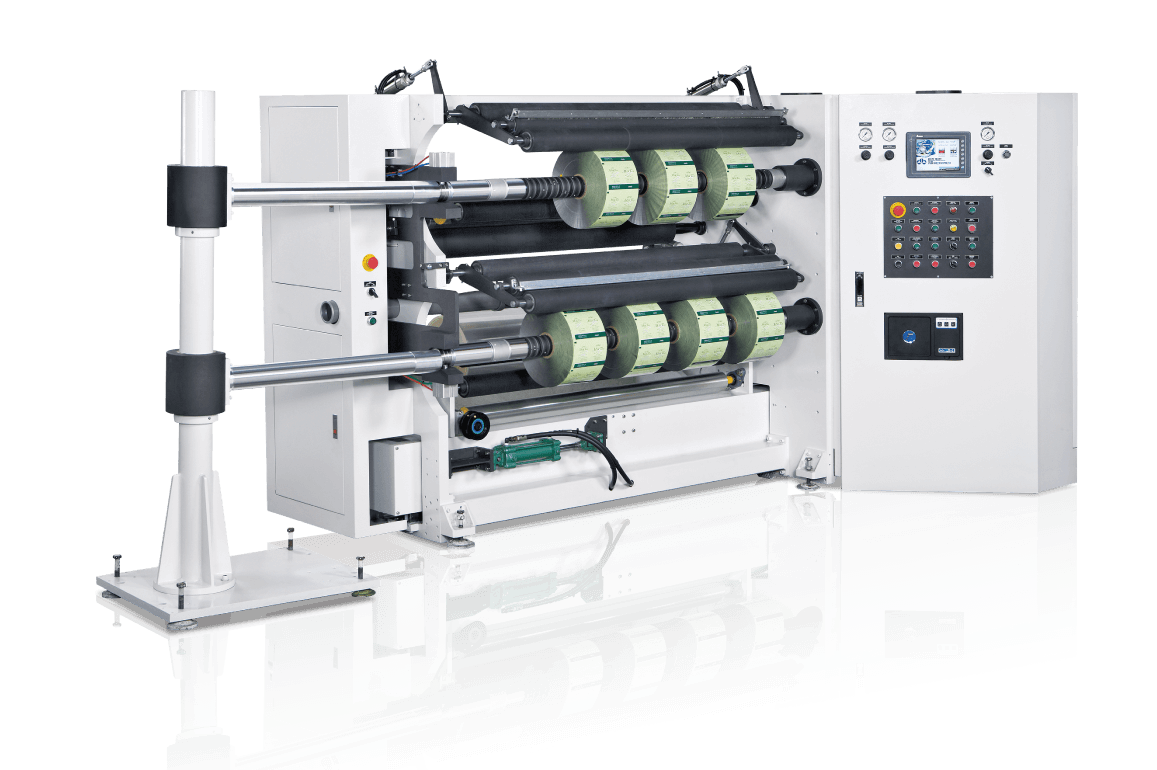

▲The Narrow Width Slitting Machine by Dah Bah delivers precise, high-speed slitting for materials like OPP, PET, CPP, shrink films, and paper, featuring dual cutting systems, surface-center rewinding, and advanced tension and position control.

2. By Cutting Mechanism

• Shear Slitter: Utilizes rotary knives, similar to scissors, making it ideal for tough materials such as metal or thick plastic, while delivering precise cuts.

• Crush (Score) Slitter: Uses a blade or roller to press material, making it suitable for brittle or layered materials such as foams or nonwovens.

• Razor Slitter: Uses razor blades; best for thin, flexible materials like films or tapes; clean and cost-effective.

3. By Material Type

• Paper/Film Slitters: Handle lightweight, flexible materials with razor or shear slitting, commonly used in packaging and printing.

• Textile Slitters: Designed for fabrics and nonwovens; use crush or shear methods with tension control.

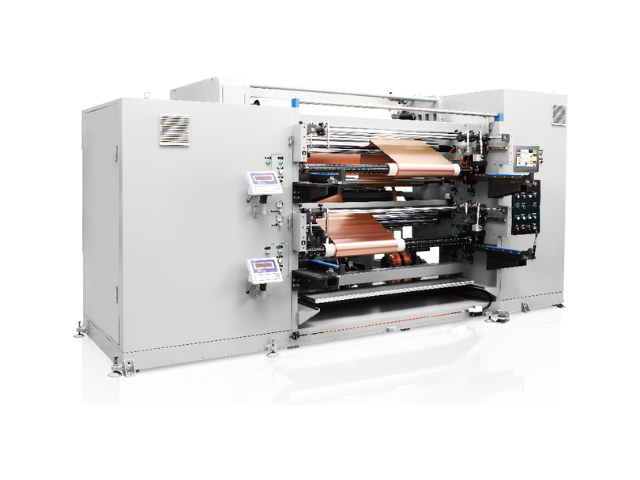

• Metal foil Slitters: Heavy-duty; use shear slitting for Aluminum/copper foils; used in automotive, batteries, smartphones, and electronics.

4. Specialized Slitters

• Duplex Slitters: Dual rewind shafts for multiple strips; ideal for labels and tapes.

• Laser Slitters: Blade-free, precision cutting with lasers; used for films and electronic materials.

• Shaftless, Multi-winding High-Speed Machines: For flexible, large-scale production.

• Turret Slitters: Rotating rewind stations for continuous, high-speed production.

Applications of Slitting Machines

Slitting machines are utilized across various industries, including:

1. Packaging Industry

• Plastic film slitting (e.g., BOPP, PET, PE) for flexible packaging

• Foil and laminated materials for food, pharmaceutical, or cosmetic packaging

• Shrink sleeve or wrap materials for bottles and containers

1. Printing & Label Industry

• Paper rolls for books, magazines, and brochures

• Adhesive labels and tapes for consumer goods and logistics

• Thermal paper rolls for POS receipts or fax machines

1. Lithium-ion Battery & Industrial Materials

• Steel, aluminum, and copper coils for construction, automotive, or appliance manufacturing

• Foil slitting for insulation or electronics

• Battery materials (e.g., lithium-ion electrode films)

1. Textile & Nonwoven Industry

• Fabrics, nonwovens, or felt for clothing, upholstery, and filters

• Carpet backing or geotextiles for construction or landscaping

• Medical textiles such as bandages and surgical fabric

1. Electronics & High-Tech

• Flexible printed circuits (FPCs) or conductive films

• EMI shielding materials, tapes, and foams

• Thin films used in LCDs, semiconductors, or solar panels

1. Tissue & Hygiene Products

• Toilet paper, tissue rolls, and kitchen towels

• Sanitary napkin and diaper liners

• Wipes and disposable cloths

FAQ

Q1: What is the difference between a slitter and a rewinder?

A: A slitter slit materials into narrow widths; a rewinder rolls the material for inspection purpose. Slitting machines combine both functions (slitter rewinders).

Q2: Can slitting machines be customized?

A: Yes. Professional manufacturer like Dah Bah Machinery offer tailored designs based on your application, whether it’s packaging, electronics, or metal foils.

Q3: Do Dah Bah Machinery’s slitting machines have automation features?

A: Yes, Dah Bah Machinery’s slitting machines are equipped with advanced automation features to ensure precision and efficiency. Examples include:

• Shaftless Hydraulic Unwinding System: Automatically loads large material rolls with high precision and minimal manual effort.

• Laser Core Positioning System: Utilizes laser technology for accurate alignment during winding core setting, which improves rewinding consistency and increases work efficiency.

• Automated Rewinding and Roll Management: Automatic pusher helps the operator handle rewind rolls with the least effort to streamline the rewinding process.

These are just examples, as automation features vary by machine model. Please contact us to learn more about the configurations that best suit your needs.

Your Trusted Slitting Machine Manufacturer: Dah Bah Machinery

Slitting machines are indispensable in industries that require precise conversion of wide rolls into smaller, usable formats. From plastic films and paper to copper and aluminum foil, these machines deliver accuracy, efficiency, and flexibility.

We believe you have gained a basic understanding of slitting machines from this article. For a reliable partner in the slitting machine industry, choose Dah Bah Machinery. Founded in 1964, with over 60 years of experience, we specialize in custom-built machines for various materials and industries, particularly in high-end applications such as copper foil slitting for lithium batteries. Our professional pre-sale consultation and after-sales service ensure satisfaction and excellent performance. Please do not hesitate to contact us for more information about our slitting machines.

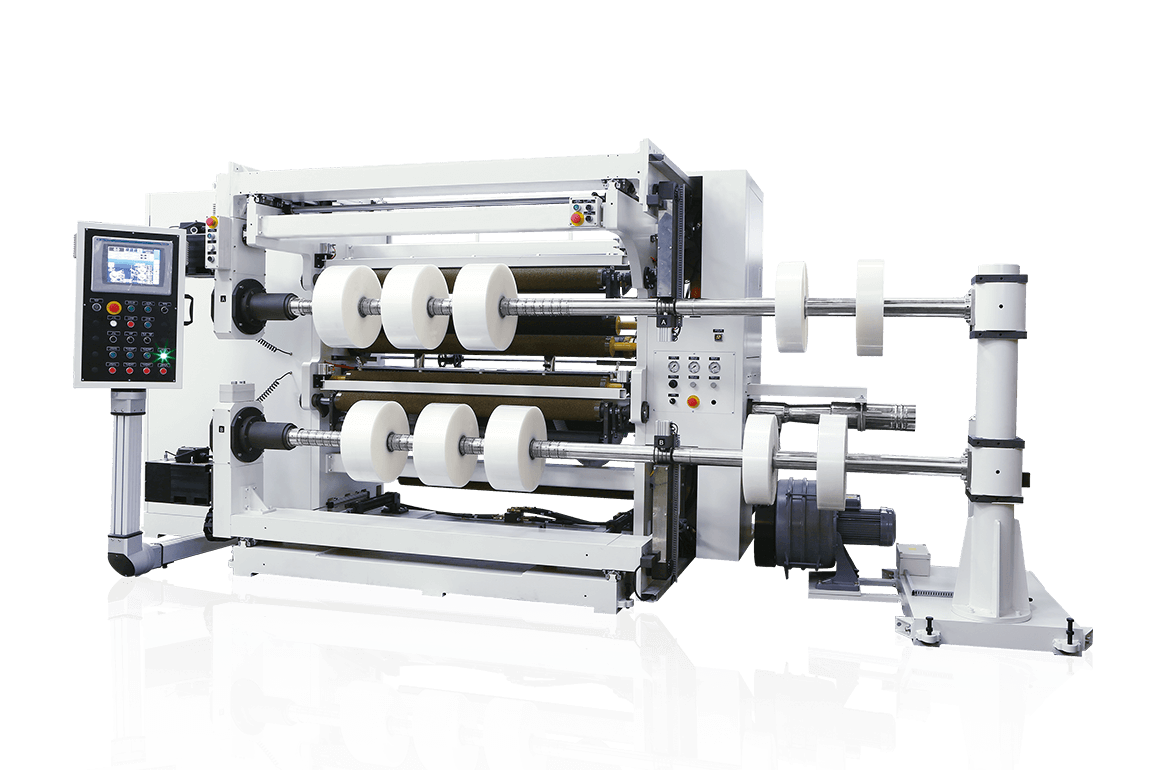

▲The Kimera Series Laminated Film Slitting Machine by Dah Bah is designed to meet the diverse demands of industries that process laminated films, while also serving as a highly effective slitting solution for meltblown nonwoven fabrics.
